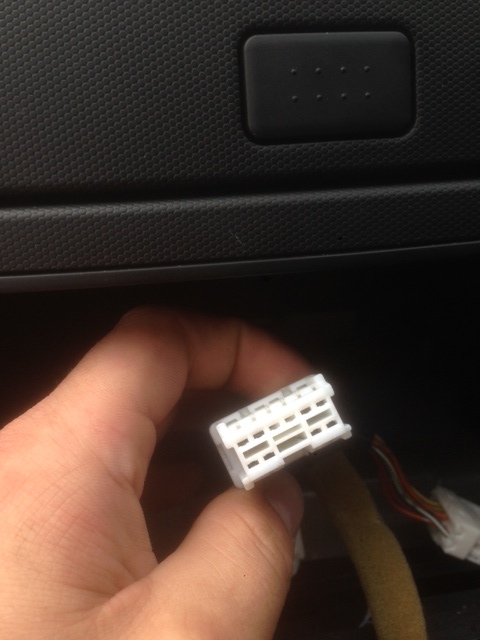

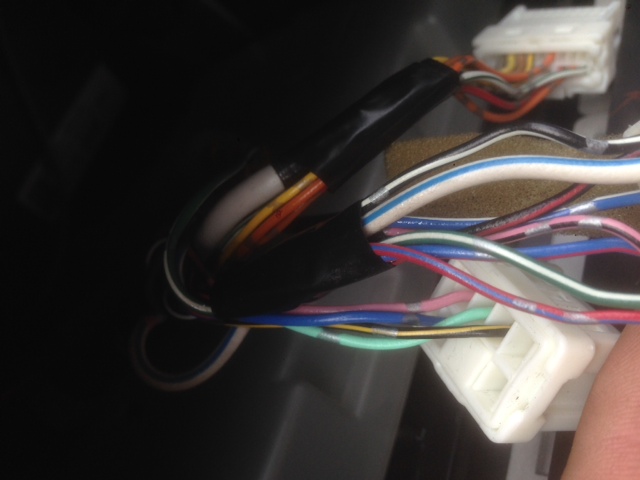

Guest Posted August 16, 2014 Share Posted August 16, 2014 Hi, this is my first post so sorry for any mistakes. Yesterday I tried to swap the radio out for a double din unit I have, (I've swapped radios many times) but on removing the plugs from the original stereo, as I pulled it out, the plug fell apart and all the wires separated from there location in the plug. Building it isnt the problem, but trying to find a diagram that is relevant to the colours on my plug is! All the diagrams I have found show different wire colours to my 350! Does anyone have the same kind of set up that they could take a photo of so I could try match mine up? This is a UK spec, non bose setup for the record, just need a diagram with my colour wires to show me where each wire sits in the plug, or a picture of someones plug with similar wiring! Any other suggestions would be fantastic, thanks in advance! Quote Link to comment Share on other sites More sharing options...
buster Posted August 16, 2014 Share Posted August 16, 2014 this should help m8 Quote Link to comment Share on other sites More sharing options...
samsniss350z Posted August 17, 2014 Share Posted August 17, 2014 Welcome to the forum, i hope you get this sorted out with the help of Busters diagram Quote Link to comment Share on other sites More sharing options...
Guest Posted August 17, 2014 Share Posted August 17, 2014 Hi, thanks for the reply! But yet the colours don't add up seems to be the M40 plug but the colours are different from that if the diagram! Quote Link to comment Share on other sites More sharing options...
buster Posted August 17, 2014 Share Posted August 17, 2014 sorry thats the bose one Quote Link to comment Share on other sites More sharing options...
