MDMetal Posted July 16, 2017 Share Posted July 16, 2017 3 minutes ago, taybo said: I'm in the same boat as you MD! This is the purple wire I spliced to to begin with. Then found out this is wrong. There is a split conduit loom wire behind the speaker in my Revup and I have found the purple wire in that lot to splice into but mine is still doing the same as yours. Still haven't had time for a 3rd attempt atm. Here is where I splice behind the speaker. Hm I've put my hands in but I can't feel any cabling behind the speaker area accept the one which I've already spliced into which goes into the door and then back to the car. The switch reversal isn't a problem just chuckling at my luck! Quote Link to comment Share on other sites More sharing options...
MDMetal Posted July 16, 2017 Share Posted July 16, 2017 got it reached up and found the cable, wrapped in a cable tie, spliced into the purple wire and everything is working as it should! Should have kept my mouth shut then id be looking smart! Quote Link to comment Share on other sites More sharing options...
Erni902 Posted July 16, 2017 Share Posted July 16, 2017 MD, can you take a pic of the purple wire you spliced into? I was thinking it was the one Taybo spliced into thd 2nd time round but he says splicing into that one still gives him problems so dont want to do it until I find out Im splicing the correct wire lol Quote Link to comment Share on other sites More sharing options...
MDMetal Posted July 16, 2017 Share Posted July 16, 2017 1 hour ago, Erni902 said: MD, can you take a pic of the purple wire you spliced into? I was thinking it was the one Taybo spliced into thd 2nd time round but he says splicing into that one still gives him problems so dont want to do it until I find out Im splicing the correct wire lol SUre thing, here you go.. Make sense? 1 Quote Link to comment Share on other sites More sharing options...
LukeA Posted July 17, 2017 Share Posted July 17, 2017 (edited) On 12/07/2017 at 10:30, kayjay0_7 said: So it seems as though there is a slight difference in colour coding on the rev up so I thought I'd add this to help out yellow - small plug green/black splice grey - small plug cut white/red wire connect to plug side white - small plug cut white/green connect to plug side orange - small plug cut white/green connect to car side brown - small plug cut white/red wire connect to car side all other wires are the same Installed mine today on my HR and this colour coding helped so much otherwise would have been stuck. Thank you. One question I have got is when I'm driving along if I want to fold my mirrors in for a tight space, I now have to push the button in the unfold position for the mirrors to fold in, so it's backwards now. Are the some wires I need to change around? heres a photo of how mine is connected, this is for a HR so will be different to older models. Also a photo of the purple wire I connected to behind the speaker. If this helps anyone Edited July 17, 2017 by LukeA Mispelling Quote Link to comment Share on other sites More sharing options...
taybo Posted July 17, 2017 Share Posted July 17, 2017 12 minutes ago, LukeA said: Are the some wires I need to change around? Yes. Connect Module grey wire to plug green + white and module white to plug red + white (i.e. swap them around) 1 Quote Link to comment Share on other sites More sharing options...
LukeA Posted July 17, 2017 Share Posted July 17, 2017 27 minutes ago, taybo said: Yes. Connect Module grey wire to plug green + white and module white to plug red + white (i.e. swap them around) Thank you, works perfectly now 1 Quote Link to comment Share on other sites More sharing options...

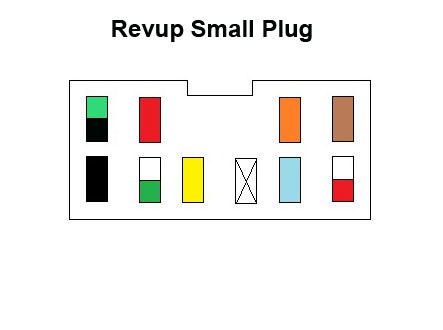

taybo Posted July 17, 2017 Share Posted July 17, 2017 (edited) Got mine all working on the 3rd attempt. Cause was a couple of bad connections on the good old scotch blocks. So this is how I finally wired it up to my Revup: Yellow Small Plug green/black wire – splice Grey Small Plug white/green wire - cut connect plug-side White Small Plug white/red wire - cut connect plug-side Black Small Plug black wire – splice Red Big Plug white wire – splice Blue Purple wire in conduit behind door speaker – splice Orange Small Plug white/green wire - cut connect car side Brown Small Plug white/red wire cut - connect car side Small plug colour coding for Revup (and possibly HR) Thanks to Kayjay and Martin for the help Edited July 17, 2017 by taybo 1 Quote Link to comment Share on other sites More sharing options...
Erni902 Posted July 19, 2017 Share Posted July 19, 2017 (edited) On 16/07/2017 at 23:06, MDMetal said: SUre thing, here you go.. Make sense? Cherrs buddy thats the wire I located so Ill give that a go Edited July 19, 2017 by Erni902 Quote Link to comment Share on other sites More sharing options...
flyboy Posted July 23, 2017 Author Share Posted July 23, 2017 On 19/07/2017 at 11:04, Erni902 said: Cherrs buddy thats the wire I located so Ill give that a go yup this is the correct wire Also if your switch is working backwards then swap the grey and white wires around on the module. It seems my 350 was wired the other way to later models. Quote Link to comment Share on other sites More sharing options...
flyboy Posted July 23, 2017 Author Share Posted July 23, 2017 On 07/07/2017 at 23:42, flyboy said: New updated list below 1. MDmetal paid in full posted out 2. Olly350z paid in full posted out 3. Erni902 paid in full posted out 4. kayjay0_7 paid in full posted out 5. Taybo paid in full posted out 6. Doom! paid in full posted out 7. Spike4real paid in full posted out 8. Lyndzzz deposit paid 9. 350_jer paid in full posted out 10. LukeA paid in full posted out 11. Chalkster deposit paid Can you all ensure that you send an address to send the mirror mod to and to also include your forum name with your payment 9 kits sent 2 people not paid yet. Thanks Folks Quote Link to comment Share on other sites More sharing options...
penfolduk Posted August 1, 2017 Share Posted August 1, 2017 flyboy ive pm'd you i'd like mirror mod Quote Link to comment Share on other sites More sharing options...
Olly350z Posted August 16, 2017 Share Posted August 16, 2017 Me and a buddy installed this yesterday, surprised how easily the door card was to remove. If im going to be brutally nit picky, Id say the instructions could be a tad clearer in regards to the location of the infamous purple wire and Id strongly say this thread needs updating with pictures in order to ease things along However, with that being said, what a great bit of kit this is! Why Nissan didn't make it an OEM thing is baffling. Im so pleased with this, big props to Martin for making this from scratch. A little feature that adds a lot of class and character! Thank you Martin Quote Link to comment Share on other sites More sharing options...
Erni902 Posted August 19, 2017 Share Posted August 19, 2017 Finally got around to fitting this after having it for months. First time round I ended up with the module functioning correctly but the mirror switch reversed i.e. unfold - folded the mirrors and fold - unfolded them. Swapped the white and grey wires (module side) and bing, everything working fine. Many thanks go out to flyboy for taking the time to devlop and build the modules. Quote Link to comment Share on other sites More sharing options...
sketch Posted October 21, 2017 Share Posted October 21, 2017 I wanna kit for my 2003 import roadster, will it work the same? Quote Link to comment Share on other sites More sharing options...
RiceBelongsOnAPlate Posted October 22, 2017 Share Posted October 22, 2017 Still available to buy? Quote Link to comment Share on other sites More sharing options...
Guest Posted January 5, 2018 Share Posted January 5, 2018 I'm just getting around to fitting this... was there an instruction sheet? I have a wiring sheet telling me where each wire is supposed to go, but I don't have anything other than that. I gather that I'm pulling the door card off; are there only one set of wires in the door? Quote Link to comment Share on other sites More sharing options...
taybo Posted January 5, 2018 Share Posted January 5, 2018 No step by step instructions. Most of the wires you need to cut into are on the too plugs under the mirror switches. The only awkward one is located behind the door speak (purple wire). Have a look higher up on this page for some more info/pics. Wire colours may differ depending on whether you have a DE or Rev-up/HR. If you need a hand I'm not very far way if you're in Taunton area. Quote Link to comment Share on other sites More sharing options...
Guest Posted January 6, 2018 Share Posted January 6, 2018 I didn't realise there was anybody else in this neck of the woods Cheers dude, I'll give it a crack myself, if my car starts going all skynet I'll know I've wired it incorrectly and take you up on your kind offer Quote Link to comment Share on other sites More sharing options...
taybo Posted January 6, 2018 Share Posted January 6, 2018 Hey there are a couple of zeds in Chard area! It took me 3 attempts to get mine working properly. Didn't blow anything up and nobody died! Quote Link to comment Share on other sites More sharing options...
Guest Posted January 7, 2018 Share Posted January 7, 2018 Eh, I can hear something clicking to activate and deactivate but nothing happening, guessing I've arsed something up or there's a dodgy connection -_- Quote Link to comment Share on other sites More sharing options...
Guest Posted January 7, 2018 Share Posted January 7, 2018 Working =D =D Dodgy connection somewhere =) Quote Link to comment Share on other sites More sharing options...
taybo Posted January 7, 2018 Share Posted January 7, 2018 30 minutes ago, Doom said: Working =D =D Dodgy connection somewhere =) Bodger block? Quote Link to comment Share on other sites More sharing options...
Guest Posted January 7, 2018 Share Posted January 7, 2018 Uncertain if it was that (I went back and applied pressure a few more times to each of them) or one of the bullet connectors, I'd nearly ballsed something up and the bullet connectors were pretty close to the small white plug and subsequently hard to work with. One of them came off pretty easily so may have been that. Either way, it works and I'm pleased that I don't have to leave my door card off and drive to work like it Quote Link to comment Share on other sites More sharing options...
btoms350z Posted January 11, 2018 Share Posted January 11, 2018 (edited) how much are these and how can i order one? Edited January 11, 2018 by btoms350z Quote Link to comment Share on other sites More sharing options...
