New Nissan Z Specifications (Features/Options/Configurator)

[GranTurismoEra]

S = Standard O = Option

Blank is Standard on Performance Model

engine	Sport	Performance
Name	VR30DDTT 3.0L V6 Twin Turbo
Cam design	DOHC
Orientation	Longitudinal
Cylinders / configuration	V6
Block / head composition	Aluminum/aluminum
Displacement (liters)	3.0 / 3042
Horsepower	400 @ 6,400 rpm
Torque (lb-ft)	350 @ 1,600 - 5,600 rpm
Bore & stroke (mm)	86.0 x 86.0
Compression ratio	10.3
Maximum engine speed	6,800 rpm
Induction system	Twin turbochargers
Valvetrain	4 valves per cylinder; Continuously Variable Valve Timing Control System (CVTCS)
Fuel delivery system	Direct Injection Gasoline
Engine oil cooler type	Engine coolant
Cooling fan type	Electric
Recommended fuel	Premium unleaded
Emissions system	Closed loop feedback system w/ 4 catalysts
Emissions certification level	50 state: LEV2-LEV (CARB), Tier2-Bin5 (Fed)
Exhaust	Dual w/ chrome finishers	Dual w/sport grade muffler





Transmission and Drive System	Sport	Performance
Drive configuration	Mid-mounted front-engine / rear-wheel drive
Transmission type 6-speed close-ratio manual w/EXEDY high-performance clutch	S O S - -	S O - S S
9-speed auto w/drive mode switch, shift by wire Paddle shifters (9AT) Unique paddle shifters (9AT) Launch control
Gear ratio 1st 2nd 3rd 4th 5th 6th 7th 8th 9th Reverse	MT 3.795 2.325 1.625 1.272 1.000 0.795 - - 3.446	AT 5.425 3.263 2.250 1.649 1.221 1.000 0.862 0.713 0.597 4.799
Final drive ratio	3.538 3.133
Drive shaft	Carbon fiber composite (6MT only)
Downshift Rev Matching	S (9AT)
SynchroRev Match®	-	S (6MT)
Mechanical clutch-type limited-slip differential	-	S
Limited Traction mode/slip function	S (9AT)	-
Hill Start Assist	S	S
Transmission coolers	9AT oil warmer and air-cooled cooler





Brakes	Sport	Performance
Front – vented disc	S	-
Rotor size diameter and thickness - (in.) 12.6 x 1.10
Rear – vented disc Rotor size diameter and thickness - (in.) 12.1 x 0.63	S	-
Front – Vented disc Rotor size diameter and thickness - (in.) 14.0 x 1.26	-	S
Rear – vented disc Rotor size diameter and thickness - (in.) 13.8 x 0.79	-	S
Caliper type / material	Fixed 2-piston front, single piston rear / cast iron	Floating 4-piston front, 2-piston rear / aluminum
Red caliper color	-	S
Yellow caliper color	-	O
Brake control	Power-assisted (vacuum)
Anti-lock Braking System Number of wheels/channels/sensors	S 4/4/4
Brake Assist	S
Electronic Brake force Distribution	S
Parking brake – mechanical, pull-type	S





Steering	Sport	Performance
Type	Electric power steering (electric rack)
Vehicle speed variable assist	S
Steering wheel	3-spoke leather-wrapped w/ air bag, manual tilt
Premium leather steering wheel	-	S
Steering wheel controls – illuminated	Cruise control, audio, Bluetooth® Hands-Free Phone
Manual tilt and telescopic steering column	S





Suspension
Front Subframe construction Stabilizer bar Shock absorbers	Double-wishbone aluminum suspension High vacuum diecast aluminum alloy S Monotube
Rear Subframe construction Stabilizer bar Shock absorbers	Independent multi-link aluminum suspension Steel S Monotube
3-point front strut tower brace	S
Sport-tuned suspension	-	S





Body / Chassis
Type	Unibody
Materials (primary)	Corrosion-resistant high-strength steel
Hood, doors, rear hatch	Aluminum

Exterior



Wheels & Tires	Sport	Performance
Wheels
Dark-painted aluminum-alloy F: 18x9 inches R: 18x9 inches	S	-
RAYS® super lightweight forged aluminum-alloy F: 19x9.5 inches R: 19x10 inches	-	S
Bronze-colored aluminum-alloy wheels F: 19x9.5 inches R: 19x10 inches	-	O
Tires
Yokohama ADVAN Sport high performance F: P245/45R18, R: P245/45R18	S	-
Bridgestone Potenza® S007 high performance F: P255/40R19, R: P275/35R19	-	S
Tire repair kit	S
Tire Pressure Monitoring System, direct sensor type	S





Lights	Sport	Performance
Headlights	LED low and high beam LED daytime running lamps	S S
Automatic on/off	S
Intelligent Auto Headlights	S
LED taillights	S
Side mirror LED turn signal indicators	S
High Beam Assist	S





Exterior Features	Sport	Performance
Body-colored door handles	S
Black front grille	S
Body-colored front and rear bumpers	S
Manual-folding body-colored outside mirrors with turn signals	S
Heated outside mirrors	-	S
Manual opening and closing hatch	S
Front chin spoiler	-	S
Rear spoiler	-	S
Side sill spoiler	S

Interior



Seating	Sport	Performance
Capacity	2-passenger
Seat Materials	Black woven cloth Synthetic suede inserts	S -	- S
Leather-appointed	-	S
Unique seat cushion and side bolster design	-	S
Exclusive Proto Spec leather-appointed seats with yellow accents	-	O
Exclusive Proto Spec suede + cloth door trim w/yellow stitching	-	O
Proto Spec interior badging	-	O
Seat Type	Sport bucket	S
Height-adjustable head restraints	S
Heated	-	S
Driver Seat	8-way manual	S	-
4-way power w/manual lifter, lumbar and thigh support	-	S
Passenger Seat	4-way manual	S	-
4-way power	-	S
Suede-appointed door trim	-	S





Audio/Navigation	Sport	Performance
Nissan audio system with 6 speakers	S	-
8.0-inch touchscreen	S	-
Bose® audio with 8 speakers, Active Noise Cancellation, Active Sound Enhancement	-	S
9.0-inch touchscreen display with navigation	-	S
Apple CarPlay®	S
Android Auto™	S
Streaming Audio via Bluetooth®	S
Bluetooth® Hands-free Phone System	S
Siri® Eyes Free	S
Hands-free Text Messaging Assistant	S
SiriusXM® Radio (SiriusXM® subscription required, sold separately)	S
Voice Recognition	S
NissanConnect® with WiFi hotspot	-	S
NissanConnect® Services	-	S





Instrumentation	Sport	Performance
Fully digital TFT meter display Speedometer, Tachometer Coolant temperature Fuel level LCD dual trip odometer	S
Instrument panel-mounted 3-bay gauge cluster (turbocharger boost, turbocharger turbine speed, voltmeter)	S
Indicators Clock Low Tire Pressure Programmable M/T shift up timing indicator (light) Cruise Control VDC off	S S When equipped with 6MT S S
Drive computer + G-meter	S





Convenience Features	Sport	Performance
Intelligent Cruise Control	S
Power windows –one-touch up/down	S
Power door locks with auto locking feature	S
Nissan Intelligent Key® with Push Button Ignition	S
Auto-dimming inside rearview mirror	S
RearView Monitor	S
2 12-volt power points	S
Knee pad on center console tunnel	S
HomeLink® Universal Transceiver	-	S
Aluminum trimmed sport pedals	-	S
Locking glove compartment	S
Glove compartment dampening	-	S
Rear window defroster with timer	S
Front center console with armrest, storage bin	S
Cupholders (2) /bottle holders (2)	S
Front map lights (2)	S
Cargo area lamp	S
USB charging ports (1 Type A, 1 Type C)	S
Dual sunvisors w/ illuminated vanity mirrors	S
Front and rear parking sensors	S
Automatic Temperature Control	S

Safety and Security



Passenger Restraint Systems
Nissan Advanced Air Bag System	Driver and front passenger air bags with dual-stage inflation, seat belt sensors and occupant classification sensor
Driver and front passenger seat-mounted side-impact supplemental air bags	S
Roof-mounted curtain side-impact supplemental air bags	S
Outboard seat belts, front	3-point (ALR/ELR for pass., ELR for driver)
Seatbelts with pre-tensioners and load limiters	S
Top tether anchor (passenger seat)	S





Safety and Security Features
Zone Body Construction with front and rear crumple zones Energy-absorbing steering column Slide away brake pedal Break away rear engine mount Hood buckling creases and safety stops Body side reinforcements Aluminum side-door guard beams Power window lockout button Vehicle Dynamic Control Traction Control System Tire Pressure Monitoring System Nissan Vehicle Immobilizer System Vehicle Security System	S
Automatic Emergency Braking with Pedestrian Detection	S
Intelligent Forward Collision Warning	S
Blind Spot Warning	S
Lane Departure Warning	S
Rear Cross Traffic Alert	S

Dimensions



Exterior (inches)	Sport	Performance
Wheelbase	100.4
Overall length	172.4
Overall width	72.6
Overall height	51.8
Ground clearance	4.8
Track	Fron t Rear	61.6 62.8	61.2 61.6





Interior (inches)
Head room	38.2
Leg room	42.9
Hip room	54.6
Shoulder room	54.2





Options	Spor  t	Performance
Proto Spec: Yellow-colored brake calipers, bronze-colored aluminum-alloy wheels, exclusive shift lever knob (MT only), exclusive Proto Spec leather-appointed seats with yellow accents, exclusive Proto Spec suede + cloth door trim with yellow stitching, special Proto Spec interior stitching



•
•















Edited May 31, 2022 by GranTurismoEra

[GranTurismoEra]

Colours



Exterior:

Monotone: Black Diamond Metallic, Gun Metallic and Rosewood Metallic.

Two-tone: Brilliant Silver, Boulder Gray, new Seiran Blue, new Ikazuchi Yellow, Passion Red TriCoat and Everest White Pearl TriCoat. All with a Super Black roof.

Interior: Black, Red and Blue



[GranTurismoEra]

Wheel Options

S = Standard

O = Option





Dark-painted aluminum-alloy F: 18x9 inches R: 18x9 inches	S	-
RAYS® super lightweight forged aluminum-alloy F: 19x9.5 inches R: 19x10 inches	-	S
Bronze-colored aluminum-alloy wheels F: 19x9.5 inches R: 19x10 inches	-	O

Yokohama ADVAN Sport high performance
Front: P245/45R18
Rear: P245/45R18

Bridgestone Potenza S007 high performance
Front: P255/40R19
Rear: P275/35R19

[GranTurismoEra]

Gearbox



9AT with Launch Control (JATCO)(GTR Paddles)

6MT with Launch Control and (EXEDY) Carbon Fiber Prop Shaft



Exhaust System



Standard HKS?! (Sport Spec)



Tuned Sport Muffler as heard in the promo (Performance Spec)



Sorry to disappoint but I saw Active Sound Enhancement listed somewhere. This may be switchable like the Q60. Please make it switchable!



It may or may not sound like this. The performance exhaust that is.





[dean_asla]

Good post, lots of useful information in one place for the people who are interested in the car.

[GranTurismoEra]

Extra Safety Features -



Automatic Emergency Braking with Pedestrian Detection
Automatic Emergency Braking with Pedestrian Detection monitors your speed and distance between you and the car ahead, and can let you know if you need to slow down.

It can also automatically engage the brakes to help avoid a frontal collision or lessen the severity of an impact. And when it detects a pedestrian in the crosswalk, it can stop you in your tracks.

Intelligent Forward Collision Warning
What’s up ahead? Intelligent Forward Collision Warning watches two cars ahead, and when it detects sudden deceleration in front of you, it gives you a warning to slow down

Blind Spot Warning
Wait. Was that a car over there? Z with Blind Spot Warning helps keep an eye on the blind spot area and gives you a heads-up if it detects a vehicle hiding there.

Rear Cross Traffic Alert
Fear no parking lot, or driveway. When you’re backing out of your space, Rear Cross Traffic Alert watches around the rear of your Z and can warn you about cars it detects creeping up on you from either side.

Lane Departure Warning
Hold it right there. Lane Departure Warning helps make sure you change lanes only when you mean to.

If the system detects that you’re drifting over, a gentle buzz on the steering wheel can let you know.

High Beam Assist
High Beam Assist can automatically deactivate the Z’s high beams if it detects an oncoming vehicle, a response appreciated by everyone. After the driver has passed, the system can reactivate the high beams.

[GranTurismoEra]

400 twin-turbocharged horsepower
At the heart of the Z is a 3.0-liter V6 twin-turbocharged 24-valve engine. An aluminum-alloy block and heads keep things light, while a water-cooled intercooler helps keep things cool. An optical speed sensor brings power with turbine speeds up to a dizzying 220,000 rpm.

Mechanical Limited-slip Differential
A new available mechanical limited-slip differential helps distribute power to the driven wheel with the best grip, helping you power out of corners
.
Launch Control
The first on any Z – available launch control helps eliminate wheel spin and hop, by holding the engine at a pre-set rpm and modulates power as you pull away to give you the fastest, most consistent acceleration every time.



6-speed manual transmission
In the 2023 Z, new first- and second-gear synchros are designed to help handle the powerful twin-turbo engine. Enhancing the connection, the shift mechanism has been redesigned to give a more direct, positive feeling.

9-speed automatic transmission
The one transmission that can tempt manual drivers. The Z features a new 9-speed automatic with shift-by-wire technology activated by a unique palm-shaped controller. For added thrills, you can employ the available steering wheel paddle shifters borrowed from the Nissan GT-R.



/cdn-cgi/image/format=auto,onerror=redirect,width=1920,height=1920,fit=scale-down/https://www.newnissanz.com/attachments/1629321116793-png.2297/

Suspension and steering
To make sure it handles like a Z, the new model features new mono tube shocks, new front geometry and rear suspension tuning. Electric power steering – the first time on a Z, allows near-infinite tuning for inspired control and precision.

Body rigidity
The stiffer the chassis, the better the suspension can work. To help get the maximum out of the Z’s suspension, torsional rigidity was increased over 10%.

Performance brakes
Tuned to give braking with excellent feel and stopping power, available Sport Brakes feature 14" front rotors with 4-piston calipers.

All-New 2023 Z driver’s interior
It holds you in ways you never dreamed of
A great dance partner knows how to hold you perfectly. Tight enough for control, but with room to move, too. Advanced technology serves up everything you need to know and nothing you don’t, combined with classic design that never forgets what a true thrilling sports car must be.

/cdn-cgi/image/format=auto,onerror=redirect,width=1920,height=1920,fit=scale-down/https://www.newnissanz.com/attachments/1629321145593-png.2298/

Redesigned cockpit
Purely driver-focused, the all-new Z keeps you in the loop with a new digital gauge cluster and an available 9” center touch-screen display with NissanConnect®, including available Door to Door Navigation, Wi-Fi Hotspot and Remote Access.

New performance seats
The Z features a new seat design that offers impressive lateral support, along with anti-slip material and a slide-reducing center pad in the lower seat cushion. Knee bolsters work with the performance seats to help keep the driver in place.

/cdn-cgi/image/format=auto,onerror=redirect,width=1920,height=1920,fit=scale-down/https://www.newnissanz.com/attachments/1629321162550-png.2299/

GT-R®-inspired steering wheel
Point to the future with a nod to our history. The leather-wrapped rim is thicker than the current GT-R, while the unique groove at the top of the wheel was inspired by the legendary GT-R R32.

Race car driver-designed gauges
The Z’s Sport Mode screen – one of three selectable screens for the digital dashboard – was designed with input from Tsugio Matsuda, a racer for NISMO in Super GT in Japan.

Legendary triple pod cluster
A Z legacy, in the all-new 2023 Z, you get key information including turbo boost, turbine speed – yes, up to 220,000 rpm – and voltage.

[GranTurismoEra]

LSD is currently only available on Performance trim. That could still change! Some complaints about that.

[GranTurismoEra]

According to Nissan Product Planning Sport Trim will NOT come with LSD for 2022 model.

[Ekona]

Oh very sporty then

[GranTurismoEra]

A bit painful having to dip in the savings again to buy an LSD after spending on the car. From what ive seen there are many options better than OEM. That can be customized to suit your style.

[davey_83]

To upgrade to a LSD it'll be circa £30 per month extra as the vehicle will be bought on finance agreement.

[GranTurismoEra]

The Head of Marketing never mentioned that there would be an option like that lol. I wonder what the two trims monthly cost difference will be with a sizeable deposit.



Im assuming a £5000 difference between sport and performance. Limited edition being slightly above performance. Then Nismo matching Supra price

Edited September 13, 2021 by GranTurismoEra

[davey_83]

At the moment, it's kind of like discussing the picture quality of an 8k TV when the country you live in doesn't facilitate for the broadcast lol

[GranTurismoEra]









Edited November 23, 2021 by GranTurismoEra

[GranTurismoEra]

The new Nissan Z has just been unveiled for the Japanese market where it will be dubbed the Fairlady Z.

Debuting at the Tokyo Auto Salon, the Fairlady Z will go on sale in Japan from the end of June and has the same basic specifications as the North American model. Prices in the local market will start at 6,966,300 yen ($61,218). £44,496.45

Japanese customers will have a number of different Fairlady Z variants to choose from. The range will consist of the base Fairlady Z, the Version S, the Version ST, and the Proto Spec, each of which can be optioned with either a six-speed manual or a nine-speed automatic gearbox.

As in overseas markets, the car is powered by the 3.0-liter twin-turbocharged VR30DDTT V6 first used by a handful of Infiniti models. This engine is good for 400 hp and 350 lb-ft (475 Nm) of torque between 1,600 rpm and 5,600 rpm with power sent exclusively to the rear wheels.

Read More: 2023 Nissan Z Coupe Is Coming For Toyota’s Supra With 400HP And A $40,000 Price Tag

While Nissan has yet to release in-depth details about each of the four available trim levels, we do know that the Proto Spec model will sit at the top of the line-up and be capped at just 240 units for the Japanese market. It takes inspiration from the original Nissan Z Proto unveiled in 2020 and is finished in Squid Yellow with a Super Black roof and wing mirrors.

Nissan has also equipped the Fairlady Z Proto Spec with a cabin clad in leather and suede-like

[GranTurismoEra]

Automatic Curb Weight 1610KG

Manual Curb Weight 1581KG

[GranTurismoEra]

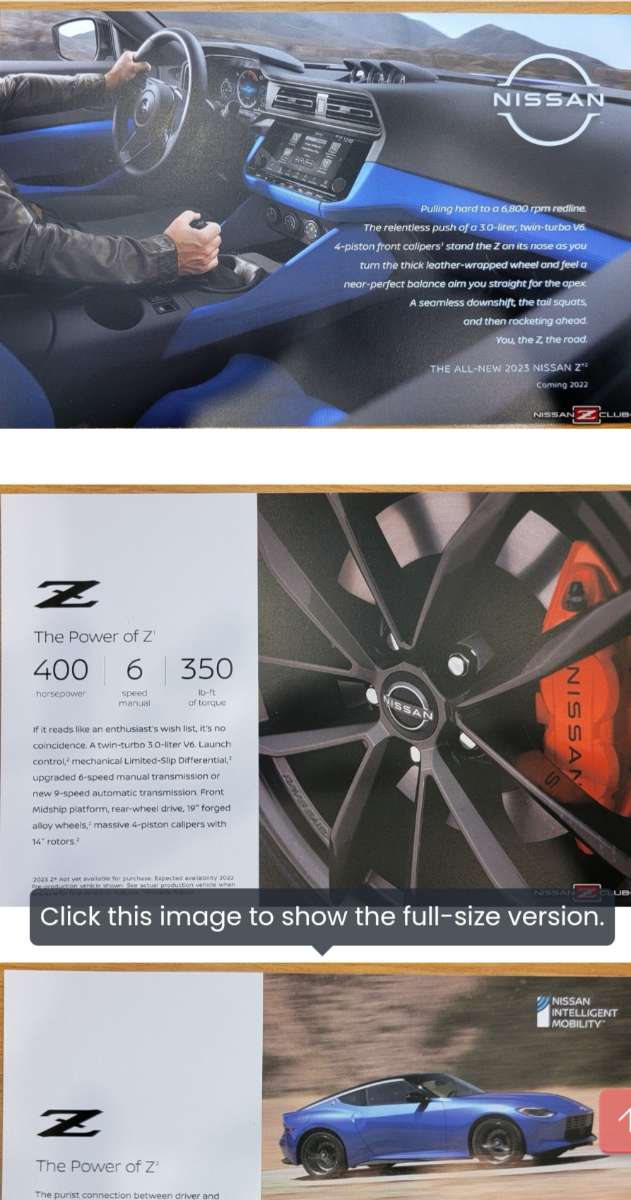

Order Brochure Leaked



MY23 Z initial VPOG-NissanZClub.pdf

[GranTurismoEra]

Configurator is now Live.



https://www3.nissan.co.jp/vehicles/new/z/simulation.html#configure/BABZj/AQ4/version
