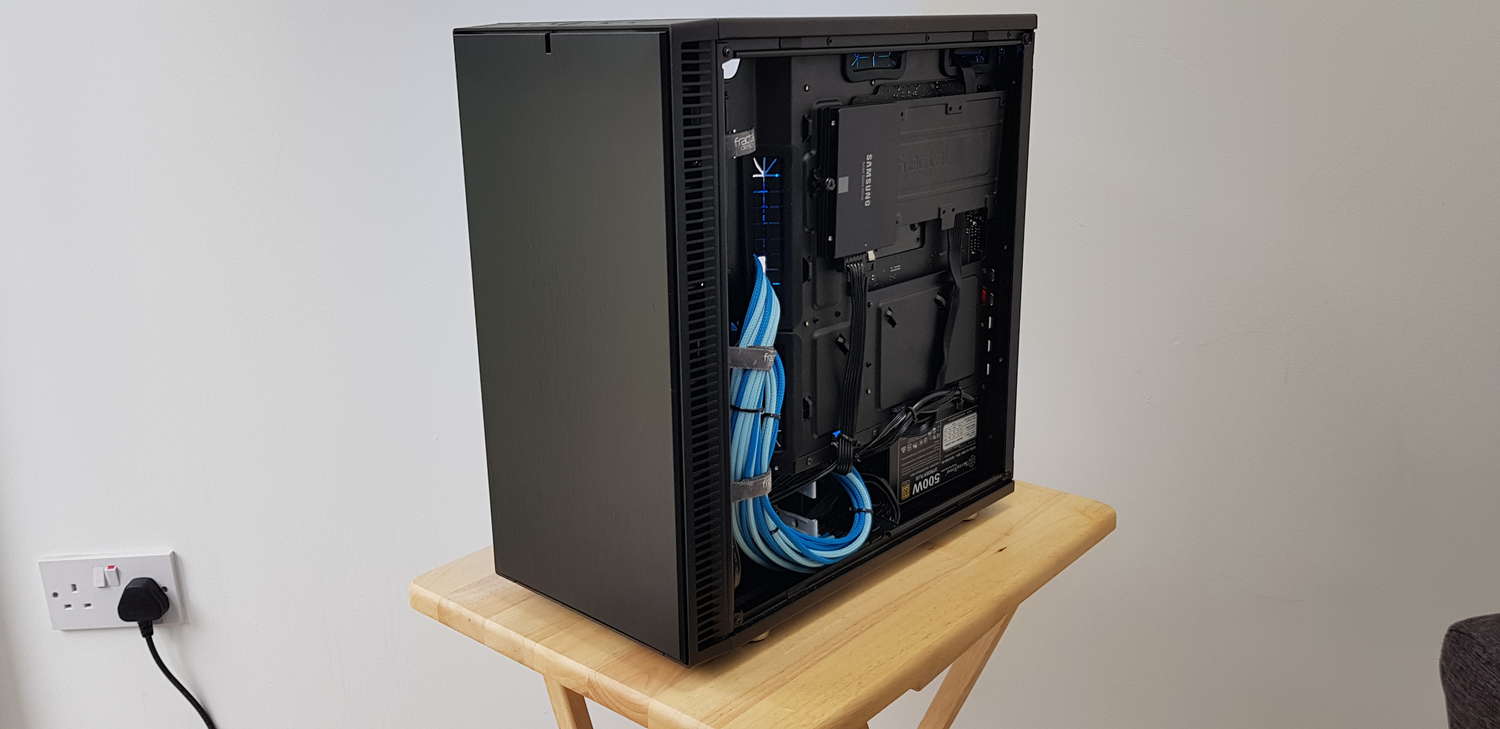

s1xtyn1n3 Posted January 30, 2018 Share Posted January 30, 2018 I've always loved messing about on and inside PC's - have built my own machines for nearly 20 years now and have started building some pretty custom machines for friends and friends of friends. Thought I'd start a build picture thread Here's my personal (see-through) rig at the moment: 1 Quote Link to comment Share on other sites More sharing options...
TT350 Posted February 9, 2018 Share Posted February 9, 2018 That's cool. It's been ages since I built a PC. I'll probably do one in the not too distant future. Will have to read up on components. Quote Link to comment Share on other sites More sharing options...
jumping350 Posted February 10, 2018 Share Posted February 10, 2018 I havent done one either be interested to see peoples builds, i just sorted a MSI gaming/editing laptop out and thought it was pretty trick until i saw the new imac pro thing.... thats savage! Quote Link to comment Share on other sites More sharing options...

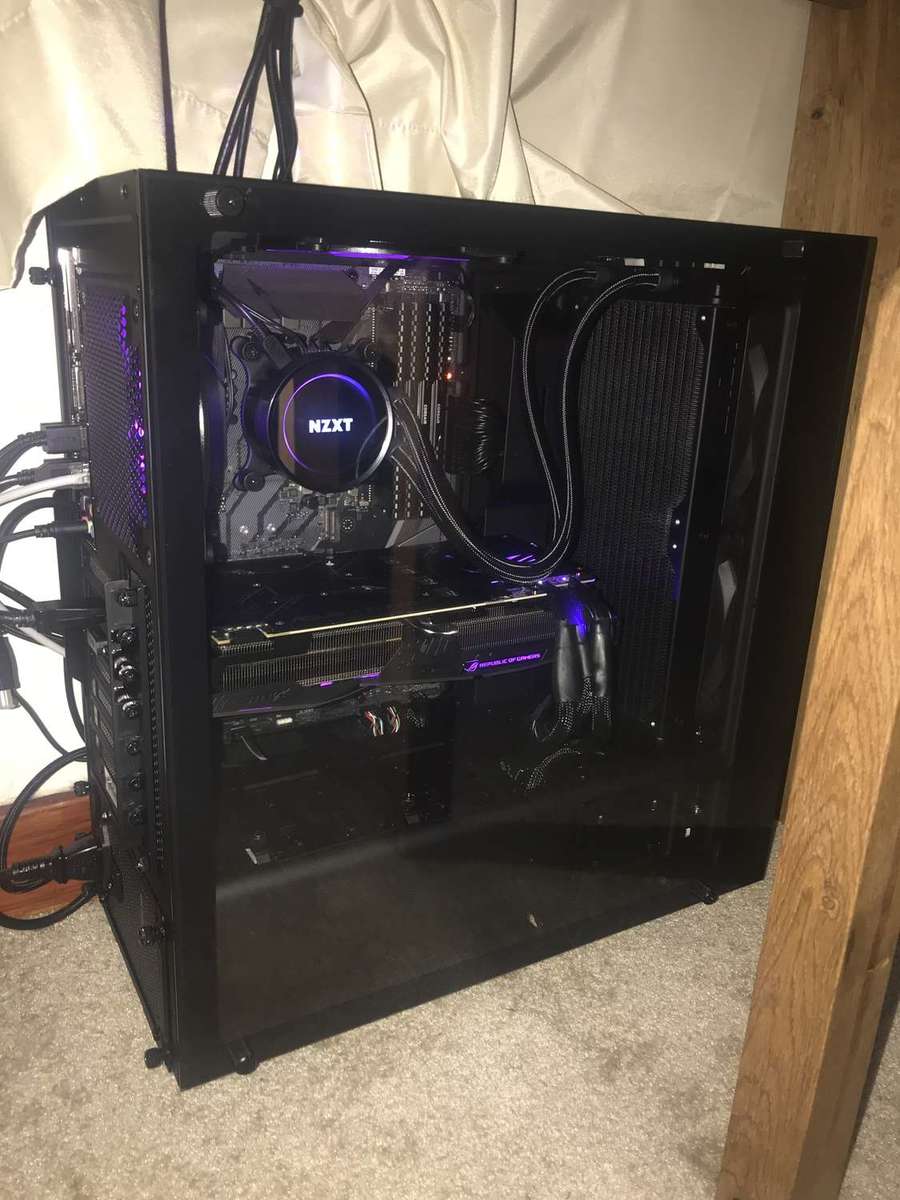

ZeppoJeff Posted February 10, 2018 Share Posted February 10, 2018 (edited) Just built my gaming rig. Thinking about going for a watercooled install next. Some specs Case - nzxt s340 elite Cooler - NZXT Kraken x62 Motherboard Asus Z370 F Processor - i7 8700k Ram - 32gb (4x8gb) Corsair vengence 3200mhz PSU - RM750X Corsair Graphics card - ASUS ROG Strix gtx 1080 ti Storage 250gb m.2 Samsung evo 2tb Seagate barracuda Fans - nzxt aer rgb 1x 120 1x 140 Lighting - Hue + 4 led strips Internal extras - nzxt usb hub Mouse - Razer deathadder elite Keyboard - Razer BlackWidow chroma Headset - Razer kraken 7.1 v2 chroma Monitor - asus rog pg278qr Edited February 12, 2018 by ZeppoJeff 3 Quote Link to comment Share on other sites More sharing options...

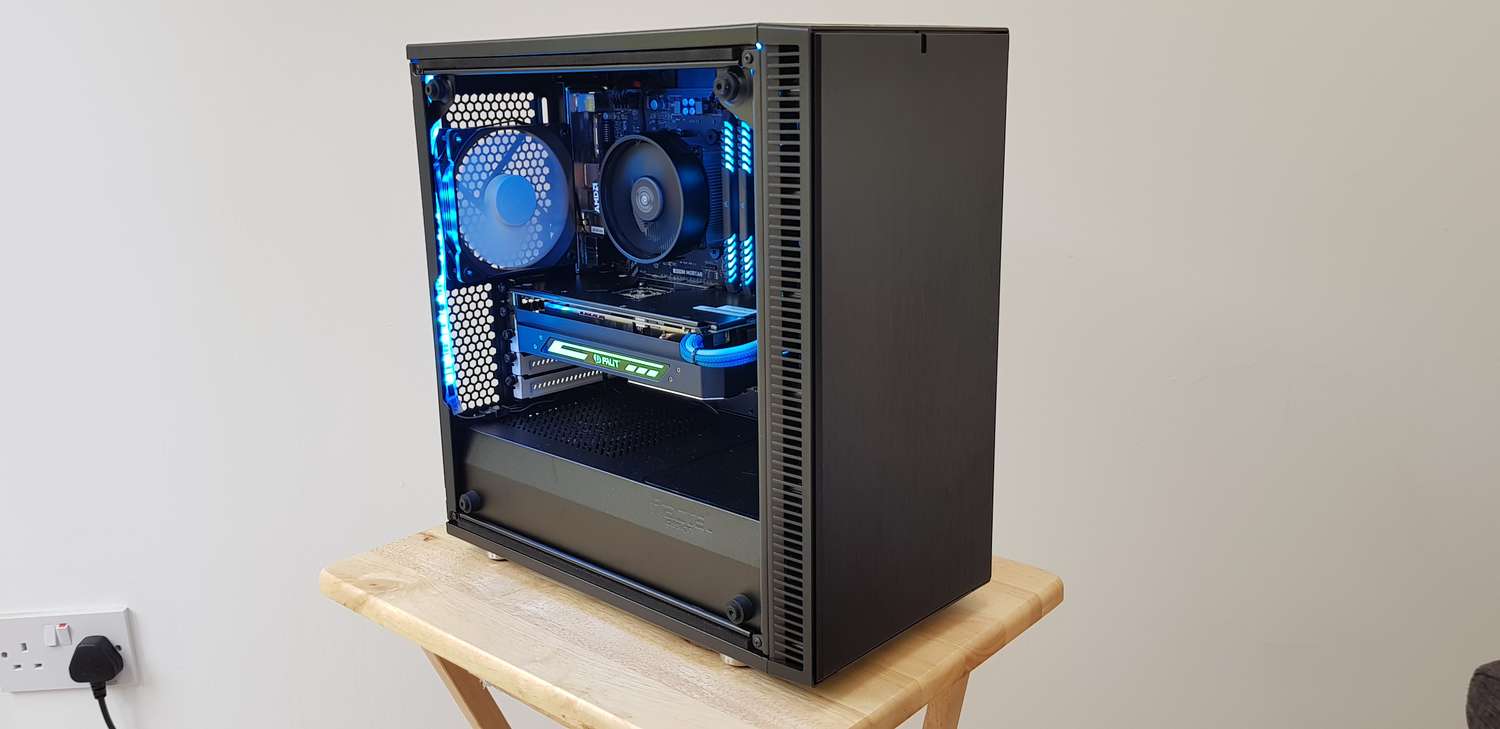

s1xtyn1n3 Posted February 10, 2018 Author Share Posted February 10, 2018 That's a clean looking build Here's a budget Ryzen system I built - all cables were measured and made and sleeved by me I think my next build is helping out on a sleeper build in a cool old IBM case so that will be fun! 1 Quote Link to comment Share on other sites More sharing options...

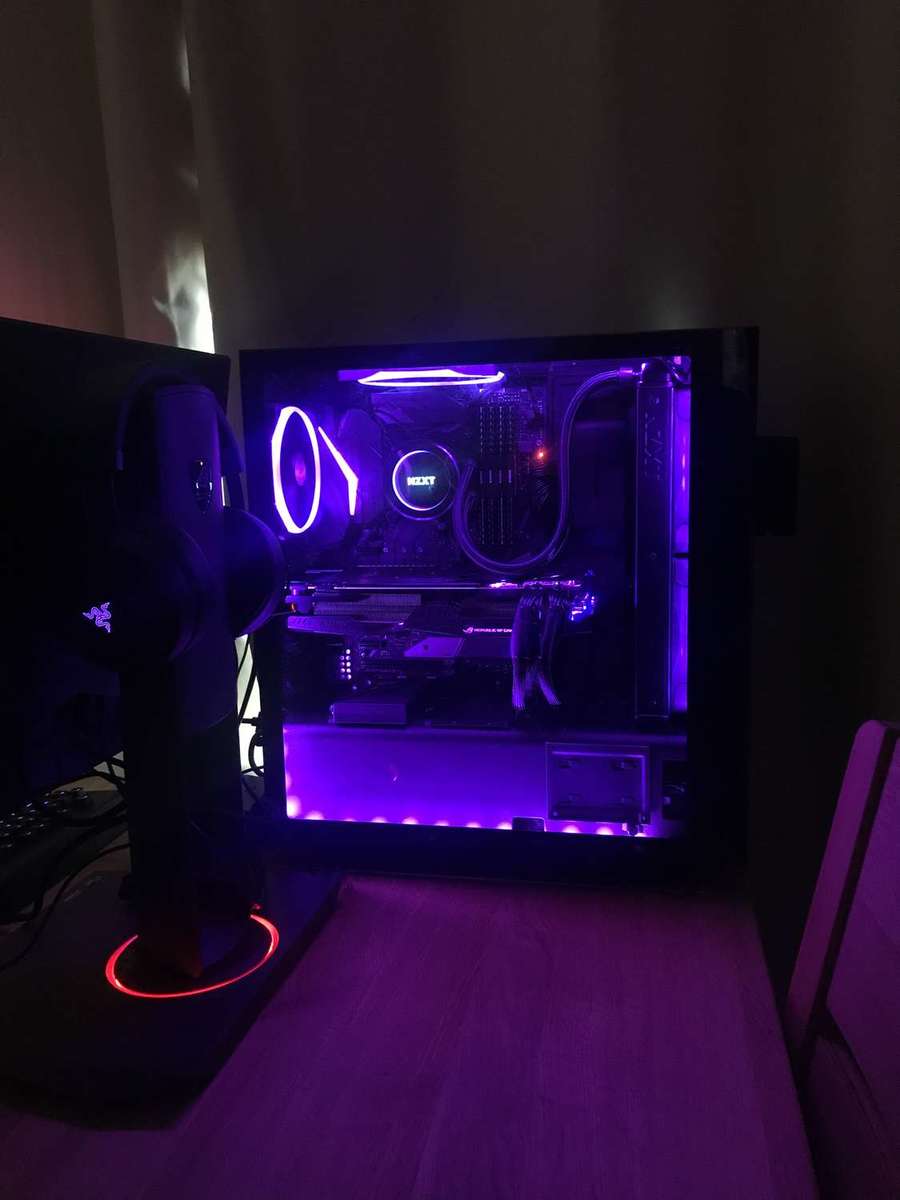

ZeppoJeff Posted February 12, 2018 Share Posted February 12, 2018 Some new lighting in build today...now I think it’s finished. Well after I get some custom cabling 2 Quote Link to comment Share on other sites More sharing options...
Cimanu Posted February 14, 2018 Share Posted February 14, 2018 This is more like it! Get the car build threads out of the way. I'll post mine up later, PC is fairly plain looking but paired to a race rig, triple monitor and Vive VR to cover all requirements 1 Quote Link to comment Share on other sites More sharing options...

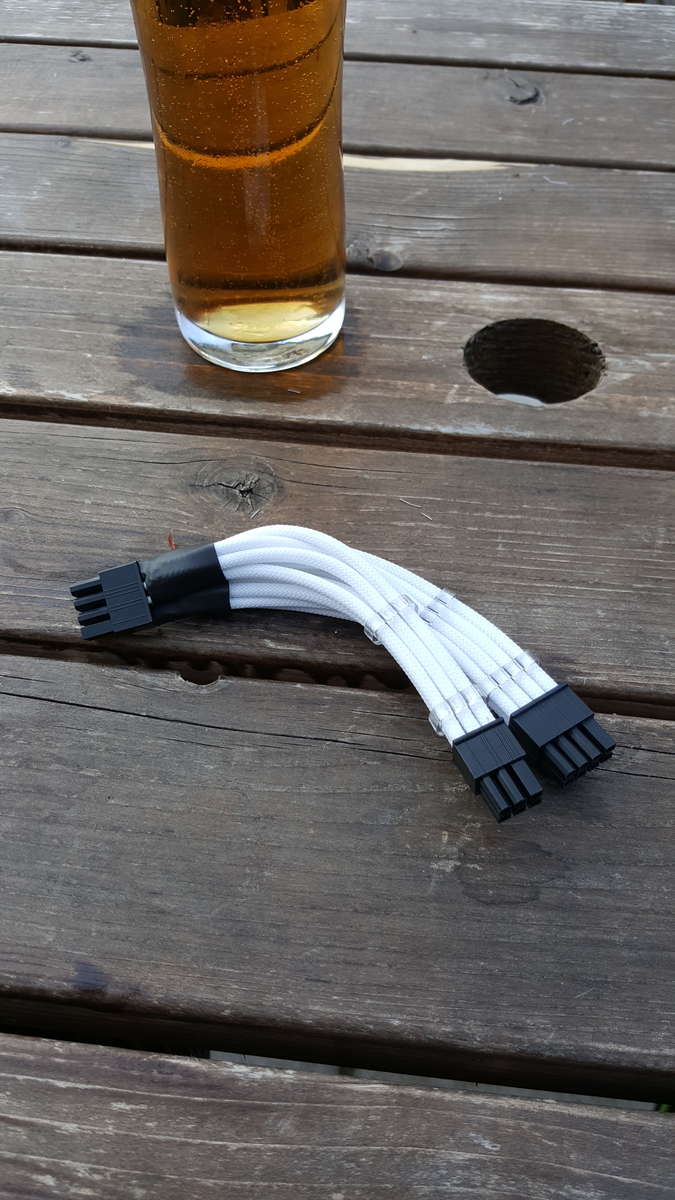

s1xtyn1n3 Posted February 19, 2018 Author Share Posted February 19, 2018 On 12/02/2018 at 22:43, ZeppoJeff said: Some new lighting in build today...now I think it’s finished. Well after I get some custom cabling NZXT Hue+? That's what I have in mine and love it! Yeah custom cables make a build look amazing - I make my own. They are fiddly to make, but being able to make them exactly the right length, including bends makes it worth while. It also means i can make some other cool adaptor cables such as this 8 pin pci-e to 8+6 pin pci-e extension: Plus I now have a supplier who does about 30-40 different colours Quote Link to comment Share on other sites More sharing options...
ZeppoJeff Posted February 21, 2018 Share Posted February 21, 2018 That’s the cables ordered for the build now...yes of course they had to be purple Quote Link to comment Share on other sites More sharing options...
Dracostan Posted March 1, 2018 Share Posted March 1, 2018 Having been thwarted recently trying to mod the car, I took it out on my computer and beat my 8+year old Packard Bell breeze block into something a lot more aesthetic ! A sleek NZXT H400i with Kraken x52 cooler loop: Cleaning out my old systems guts to transplant was an experience - surprised it hadn't cooked itself before now ! Gross 1 Quote Link to comment Share on other sites More sharing options...

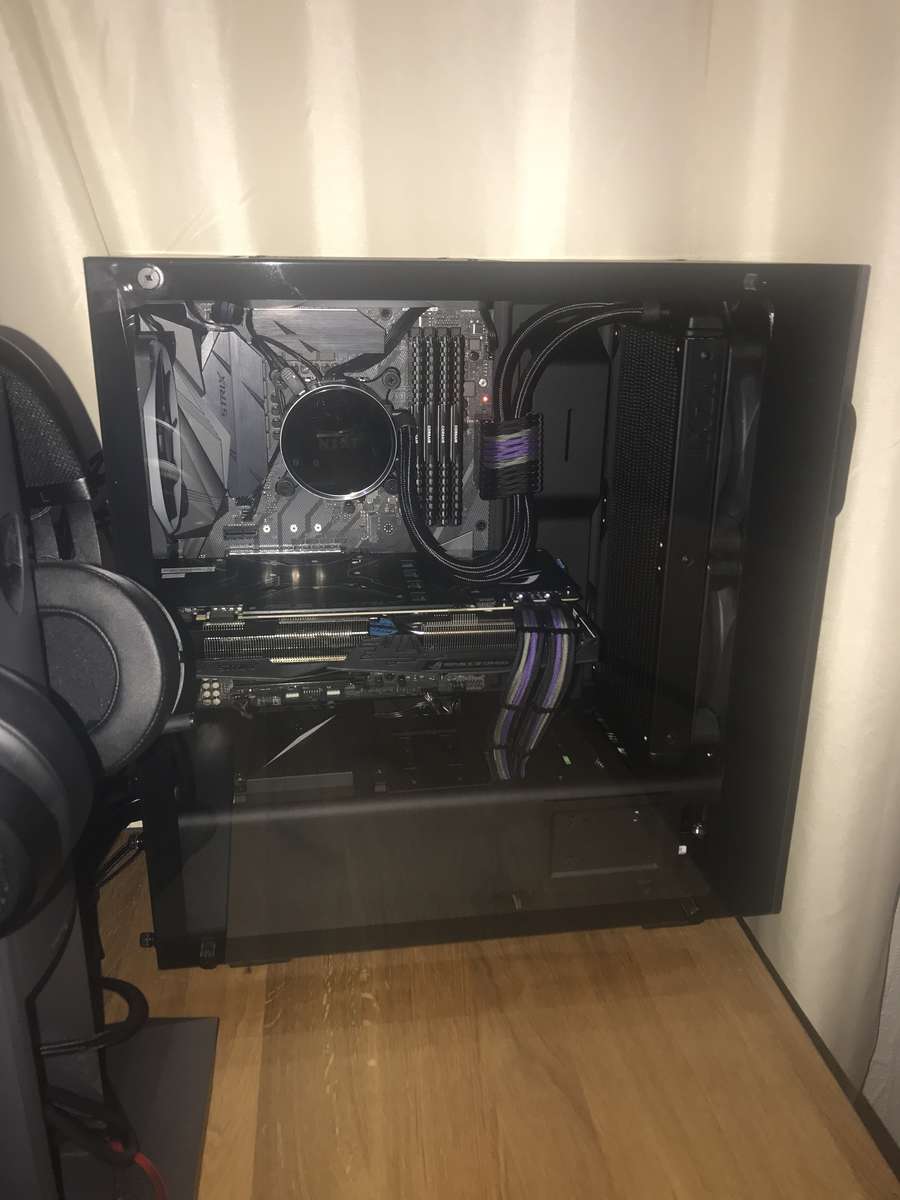

ZeppoJeff Posted March 1, 2018 Share Posted March 1, 2018 Like my car I just can’t leave stuff as it is...so custom cabling now installed. Now I’m just debating if I should delid the 8700k and watercool the whole lot. Quote Link to comment Share on other sites More sharing options...
TT350 Posted March 1, 2018 Share Posted March 1, 2018 Who's pc sounds like a jet taking off? Quote Link to comment Share on other sites More sharing options...
The Bounty Bar Kid Posted March 2, 2018 Share Posted March 2, 2018 used to build PCs, when I used to game. I want one of these ... https://www.hydra-shop.com/product/hydra-desk/ Quote Link to comment Share on other sites More sharing options...
s1xtyn1n3 Posted March 2, 2018 Author Share Posted March 2, 2018 Doing some more custom cable work this afternoon - Custom length sleeved ATX and PCI-E cables which should be fun. Also doing some cable management on the same build. Will try and get pictures of all that if people are interested. This is all for someone else though.... I really want to do hardline water cooling in my system - the loop will be about £400 I reckon, but I think I'm going to wait and do it when i refresh my system. Seems little point to doing it now on my 6700k/1080 machine Quote Link to comment Share on other sites More sharing options...
GreenLandy Posted March 2, 2018 Share Posted March 2, 2018 I'm a complete novice at this, but have a question: I've got an old Dell desktop - can I simply remove the motherboard, graphics card, ram and processor and replace them with modern equivalents? Ie keep the case, cd drive, harddrives (would probably upgrade them tbf) and power supply the same? I desperately need a new machine and always fancied tinkering with them and then found this old Dell in the loft and just wondered if it was doable. Might end up being cheaper just buying a new one anyway admittedly Quote Link to comment Share on other sites More sharing options...
neo Posted March 2, 2018 Share Posted March 2, 2018 (edited) depends what model and spec your dell tower is, older models use different mounting points for the motherboard, more than likely the PSU will be very low powered (240-300watts) unit, the power on button/switch may only work with dell motherboard as the connectors maybe proprietary. if the CD/DVD drive is SATA you can reuse that, IF the power connector isn't a 2 wire dell only one that is, ram maybe reused if its DDR3, DDR4 is fairly recent so guess it won't be that, harddrive should be able to use, again depends if it's SATA or not - https://en.wikipedia.org/wiki/Serial_ATA might be best to start from scratch as it will be easier in the long run and keep the dell for a backup pc. what do you use a pc for, gaming, movie editing or just browsing the internet ? what sort of budget have you got in mind ? Edited March 2, 2018 by neo Quote Link to comment Share on other sites More sharing options...
GreenLandy Posted March 2, 2018 Share Posted March 2, 2018 Nothing high powered, just browsing and the odd bit of work. All cheap PCs seem to only support 1 screen though and 2 monitors minimum is a must for me. I guess I could buya cheap dell and then put a proper graphics card in for the dual monitors, but then wondering whether I might as well build it myself. Is it still noticeably cheaper to build it yourself? Quote Link to comment Share on other sites More sharing options...
neo Posted March 2, 2018 Share Posted March 2, 2018 whats your dell hardware spec at the moment, windows 7, 8 , 8.1 or 10 ? should be able to get a cheap graphic cars that supports dual monitors, quick google search - http://multimonitorcomputer.com/top-4-best-videocard-for-multiple-monitor-computers.php Sorry OP for going slightly off topic Quote Link to comment Share on other sites More sharing options...
GreenLandy Posted March 3, 2018 Share Posted March 3, 2018 That dell is xp! Bought in the the mid 2000s I think. Quote Link to comment Share on other sites More sharing options...
neo Posted March 3, 2018 Share Posted March 3, 2018 best put it back into the loft. have you tried eBay for a second hand Dell tower ?? have had a few dell 7010 or 3010 (SFF) from various sellers without issue, a few generations old but still perfectly fine, slightly newer versions are 9010 or 9020. you could always look at building yourself,been building pc's since windows 95 Quote Link to comment Share on other sites More sharing options...
neo Posted March 3, 2018 Share Posted March 3, 2018 (edited) My build - Windows 10 Home 64-bit Aerocool aero-500 case in white, cheapish case,looks good tho ( removed side panel for the pic) Intel Core i5 4570 @ 3.20GHz Arctic Freezer 7 pro Rev.2 cooler - had this for years on a AMD phenom II now on my intel, works pretty good and quiet. 8.00GB Dual-Channel DDR3 @ 799MHz (9-9-9-24) MSI H97M-G43(MS-7924) S240HL (1920x1080@60Hz) NVIDIA GeForce GTX 1060 6GB (Gigabyte) 480GB OCZ-ARC100 (SSD) 2TB SAMSUNG HD204UI (SATA) 2TB SAMSUNG HD204UI (SATA) TSSTcorp CDDVDW SH-S223B - been in several builds EVGA 650 CQ psu - set to eco mode, never heard the fan kick up at all. yes the CPU is older gen but does everything i need so no point upgrading, pc is almost silent when browsing the net, older games it's still almost silent, battlefield or dirt rally kicks the fans up a little but still very quiet. Edited March 3, 2018 by neo Quote Link to comment Share on other sites More sharing options...
GreenLandy Posted March 3, 2018 Share Posted March 3, 2018 2 hours ago, neo said: best put it back into the loft. have you tried eBay for a second hand Dell tower ?? have had a few dell 7010 or 3010 (SFF) from various sellers without issue, a few generations old but still perfectly fine, slightly newer versions are 9010 or 9020. you could always look at building yourself,been building pc's since windows 95 Not a bad idea I suppose. Wouldn't mind building myself, but just wondering whether the cost is worth it for me. Looking at your 9010/9020 ebay suggestions and you can get one for £150-200 which is pretty good. Can then mod that as needed. Are the slimline towers more of a PITA for upgrading graphics cards etc? Quote Link to comment Share on other sites More sharing options...
neo Posted March 3, 2018 Share Posted March 3, 2018 (edited) yeah slim towers (SFF - small form factors) are limited in hard drive space and graphics cards, they need a LP - low profile version, i have a gtx 750ti in a dell 7010 SFF, plays most games at pretty high details at a decent framerate. Best to go for a full tower then you can fit a few hard drives, full size graphic cards, then if needed, a different PSU as well. it is easy to build yourself, look on youtube for guides,plenty of computer forums as well for help and suggestions, if you want to go that route, a budget in mind it will make your decision easier To give you some idea of costs, my GTX1060 6GB cost £239 back in oct 2016, now they are over £300. Edited March 3, 2018 by neo Quote Link to comment Share on other sites More sharing options...
neo Posted March 4, 2018 Share Posted March 4, 2018 looks like the dell 9020 uses a proprietary PSU - https://www.ebay.co.uk/itm/Dell-i5-Optiplex-9020-Tower-PC/183104402313?hash=item2aa1df7389:g:wK0AAOSwQglamWp6 doesn't use the standard 20/24 pin motherboard connector as i wrongly assumed Quote Link to comment Share on other sites More sharing options...
GreenLandy Posted March 5, 2018 Share Posted March 5, 2018 Cheers for your help. Looks like the 9020 might be good enough for me in standard spec anyway, and I can just add in my existing hard drives to bulk that up. I doublt I'll be needing to mess around with the PSU anyway. If I get that into it I might as well do a proper build! Quote Link to comment Share on other sites More sharing options...
